Impulse Heat Seal Components and Heat Seal Supplies
TOSS impulse heat seal components and supplies are used to build systems that produce predictable sealing of plastic pouch packaging and related products. The growth of high-technology products that are delicate or perishable has created an increasing demand for superior packaging to protect the quality of the product as well as the integrity of the immediate environment that surrounds the product.
TOSS Technology components provide control of the sealing process with the instantaneous feedback required to attain the desired sealing temperature within milliseconds and regulate the selected temperature and sealing time with repeated precision.
PIREG® Impulse Heat
Seal Controllers
TOSS offers a large selection of impulse heat seal temperature controllers...
Alloy-20® Straight and Contour Heat Seal Bands
TOSS Alloy-20 impulse heatseal bands are available in over 350 shapes and sizes...
Extruded Aluminum
Heat Seal Jaw Bars
Made from extruded aluminum, TOSS bars are straight and true...
Impulse Heat
Sealer Supplies
In The Optimum Sealing System, the impulse heat seal band must insulated from the jaw bar...
Power Boosters, Transformers, and Line Filters
TOSS power boosters, transformers, and line filters assure quality seals...
Hot Air and Continuous
Band Sealers
With the TOSS hot air sealer, continuous sealing of thermoplastic films can be achieved...
Web System
Forming Collars
Web system forming collars as an essential component of vertical tubular bag packaging machines...
Pneumatic Linear
Ball Slides
Robust, air-actuated, accurately guided, ball slide is superior in durability and reliability...
Heat Seal Components
There are several configurations you may wish to use in setting up your heat sealing system. A TOSS Applications Engineer is available to provide consultation on the perfect system. It is necessary to provide a backup material behind the impulse heat seal band when it is mounted on the heat seal jaw bar or platen. It is also necessary to provide a cushion or facing on the opposite jaw bar or platen face.
The selection of the best combination of these components may require some testing to determine which combination of these elements is most effective with the material to be sealed. The impulse heat seal band must be both electrically and thermally insulated from the jaw bar. The most common materials used for this purpose are PTFE tape, SNAPLON®, Siglaha®, Polyimide and Durit®.

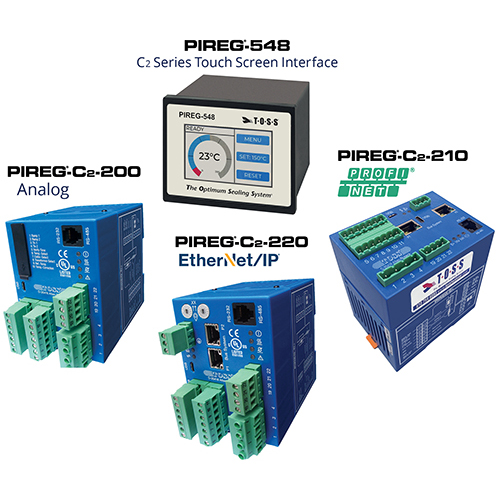

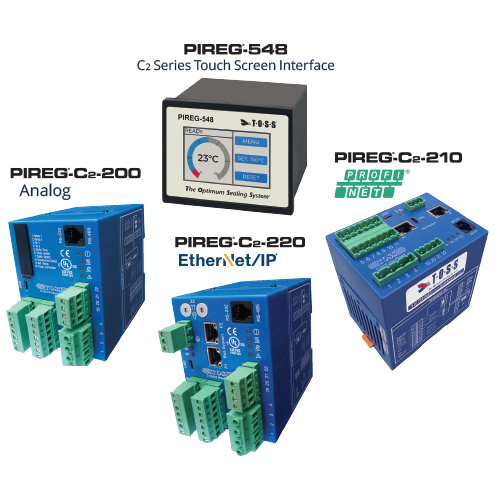

Controllers
TOSS Machine Components, Inc. offers a large selection of impulse heat seal temperature controllers. Within the PIREG Series are panel-mounted controllers as well as cabinet-mounted. Some of these controllers have PLC interface features. Others have complete timing capability so that external timers are not needed. The selection of the correct one depends upon the application. Learn More
Heat Seal Bands
TOSS Alloy-20 impulse heatseal bands are available in over 350 shapes and sizes; as well as custom-designed contour shapes to match your application needs. Custom designed for any application, TOSS Alloy-20 impulse heatseal bands are longer lasting and provide effective sealing at optimum speeds. Learn More
Heatseal Jaw Bars
Made from extruded aluminum, TOSS bars are straight and true to assure uniform force and create perfect seals. Single lengths are available up to twelve feet and can be connected easily for longer applications. Water-cooling is also available. Precision-machined heatseal jaw bar assemblies include jaw end blocks that assure proper heat seal band monitoring and tensioning. Learn More
Ancillary Supplies
In The Optimum Sealing System, the impulse heat seal band must be electrically and thermally insulated from the jaw bar. TOSS offers a wide selection of PTFE cover cloths and tapes that are available in standard and custom sizes. Other insulating materials available from TOSS include Silicone Rubber, Durit® and Siglaha® (silicone glass). Learn More
Transformers, Power Boosters, and Line Filters
TOSS power boosters to accommodate the high power needs of extra large heat seal bands and impulse transformers from TOSS are engineered to deliver the optimum voltage for the intended sealing application. TOSS transformers are electrically quiet and equipped with multi-tap terminals making secondary voltage changes quick and easy while line filters minimize the risk of possible interference from power line noise. Learn More
Hot Air and Continuous Band Heat Sealers
With the TOSS hot air sealer, continuous sealing of thermoplastic films can be achieved The continuous band sealers are driven by a mechanical link to the basic machine, or by servo motor and includes a pneumatic retract to avoid overheating in the stand-still condition. The system allows for the creation of either intermittent or continuous seam seals. Learn More
Forming Shoulders
TOSS Machine Components designs and manufactures round, rectangular and oval-shaped shoulders for all types of form/fill/seal machines. Complete forming sets, as well as components such as gas flushing units, chutes, spreaders, filling tubes and traverses represent only a fraction of our range of equipment.
Learn More
Ball Slides
Designed to actuate or carry loads to a predetermined destination; or provide pressing, pushing, pulling or stamping power; this robust, air-actuated, accurately guided, ball slide is superior in its durability and reliability.
Learn More
