TOSS carries Ropex® Resistron® Brand Impulse Heat Seal Controllers
In-Cabinet Impulse Heat Seal Controllers
In-cabinet heatseal temperature controllers utilize digital technology and are universally adaptable to almost every heat sealing application. These controllers are designed for “in cabinet” mounting to protect the controller from such hazards as untrained personnel and chemical washdown.
RES-5007
- Replaces RES-407
- Wide voltage range for the use of 110…480 VAC
- 0…10 VDC analog output for ACTUAL temperature
- Setpoint selection with 0…10 VDC analog input or potentiometer
- Heat sealing band alloy and temperature range (max. 500 °C) selectable
- Fault output and indication (LED) with error diagnostics
- UL certification
RES-5027
- Replaces RES-406MOD26
- Wide voltage range for the use of 110…480 VAC
- Booster output
- 0…10 VDC analog output for ACTUAL temperature
- Setpoint selection with 0…10 VDC analog input or potentiometer
- Heat sealing band alloy and temperature range (max. 500 °C) selectable
- Fault output and indication (LED) with error diagnostics
- Temperature OK output
- UL certification
Download RES-5027 Operating Instructions
RES-5008
- Replaces RES-408
- Separate terminal for operation and display
- 0…10 VDC analog output for ACTUAL temperature
- 24 VDC control signals for START and PREHEAT
- Heat sealing band alloy and temperature range (max. 500 °C) selectable
- Fault output and indication (LED) with error diagnostics
Download RES-5008 Operating Instructions
RES-5010
- PROFINET interface for controlling all controller functions (2 x RJ-45)
- Wide range of voltage for the use of 110…415 VAC
- Booster output
- 0…10 VDC analog output for ACTUAL temperature
- Heat sealing band alloy and temperature range (max. 500 °C) selectable
- Fault output and indication (LED) with error diagnostics
- UL certification
RES-5011
- EtherNet/IP interface for controlling all controller functions (2 x RJ-45)
- Wide range of voltage for the use of 110…480 VAC (as from 02/2021)
- Booster output
- 0…10 VDC analog output for ACTUAL temperature
- Heat sealing band alloy and temperature range (max. 500 °C) selectable
- Fault output and indication (LED) with error diagnostics
- UL certification
RES-5006
- PROFIBUS DP interface for complete control
- Wide voltage range for the use of 110…415 VAC
- 0…10 VDC analog output for ACTUAL temperature
- 24 VDC control signals for START and PREHEAT
- Heat sealing band alloy and temperature range (max. 500 °C) selectable
- Fault output and indication (LED) with error diagnostics
Panel Mounted Impulse Heat Seal Controllers
Panel-mounted heat seal temperature controllers leverage advanced digital technology, making them universally adaptable to nearly all heat sealing applications. These controllers are designed for panel mounting, allowing operators to easily view sealing parameters and make process adjustments when the controls are unlocked.
RES-440
- Microprocessor Technology
- LC display (green), 4 lines, 20 characters, (multilingual)
- Automatic zero Calibration
- Automatic optimization (AUTOTUNE)
- Automatic phase angle compensation (Autocomp)
- Automatic frequency adjustment
- Booster connection standard
- Time control, heatsealing time and cooling time settable
- Preheating
- Configurable relay output, e.g. "end of cycle"
- Signal output for "Temperature OK"
- 0 . . . 10 VDC analog output for ACTUAL temperature, electrically isolated
- Alarm function with fault diagnosis
RES-445
- Microprocessor Technology
- LC display (green), 4 lines, 20 characters, (multilingual)
- Automatic zero Calibration
- Automatic optimization (AUTOTUNE)
- Automatic phase angle compensation (Autocomp)
- Automatic frequency adjustment
- Booster connection standard
- Time control, heatsealing time and cooling time settable
- Preheating
- Configurable relay output, e.g. "end of cycle"
- Signal output for "Temperature OK"
- 0 . . . 10 VDC analog input for set point selection, electrically isolated
- 0 . . . 10 VDC analog output for ACTUAL temperature, electrically isolated
- 24 VDC control inputs for AUTOCAL, PREHEAT, and RESET, electrically isolated
- PLC Controllable
- Alarm function with fault diagnosis
RES-420
- Microprocessor Technology
- LC display (green), 4 lines, 20 characters, (multilingual)
- Automatic zero Calibration
- Automatic optimization (AUTOTUNE)
- Automatic phase angle compensation (Autocomp)
- Automatic frequency adjustment
- Booster connection standard
- Alarm function with fault diagnosis
Download RES-420 Operating Instructions
Download RES-420, RES-440, RES-445 Technical Sheet
In-Cabinet Impulse Heat Seal Controllers- **To be Discontinued**
In-cabinet heatseal temperature controllers utilize digital technology and are universally adaptable to almost every heat sealing application. These controllers are designed for “in cabinet” mounting to protect the controller from such hazards as untrained personnel and chemical washdown.
RES-401
- Setpoint selection with potentiometer
- Max. temperature 300 °C
- 0…10 VDC analog output for
- ACTUAL temperature
- Film wrapping machines
- Fault indication (LED)
RES-402
- Max. temperature 300 °C
- Reduced secondary voltage (80 VAC)
- 0…10 VDC analog output for ACTUAL temperature
- 24 VDC control signals for START, AUTOCAL and RESET
- Setpoint selection with 0…10
- VDC analog input or potentiometer
- Fault output and indication (LED)
RES-407
- Automatic zero calibration (AUTOCAL)
- Automatic optimization (AUTOTUNE)
- Automatic phase angle compensation (AUTOCOMP)
- Automatic frequency adjustment
- Automatic configuration of the secondary voltage and current ranges (AUTORANGE)
- Diagnostic tool (CI-USB-1)

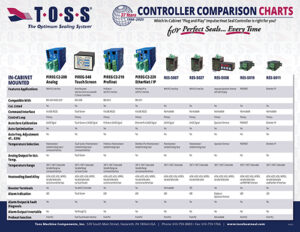

PIREG Controller Comparison Chart
In-Cabinet vs Panel Mounted – Which "Plug and Play" PIREG controller is right for you?
Complete Selection of Accessories and Components
A wide range of compatible accessories and peripheral devices are available for the PIREG temperature controllers. They allow it to be optimally adapted to your specific heatsealing application and to your plant's design and operating philosophy.
